JBL Commercial Products

CSSM100 (India only)

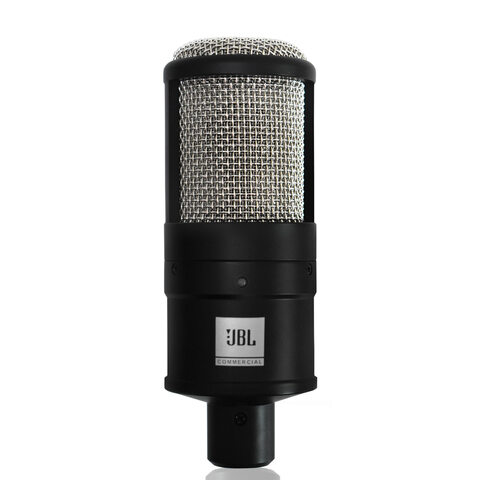

The JBL Commercial CSSM100 Studio Condenser Microphone is a general purpose condenser microphone that is ideal for recording & on-stage purposes. It can be used to record both, vocals and instruments.

With features like rugged metal body, hyper cardioid pickup pattern, and a wide frequency response, you will #SoundYourBest with the CSSM100.

The microphone uses a condenser capsule designed for 48-volt phantom power & requires an external power supply.

Ideal For

  • Studio recording
  • On-stage performance
  • Vocal and instrument
HARMAN Professional Solutions:

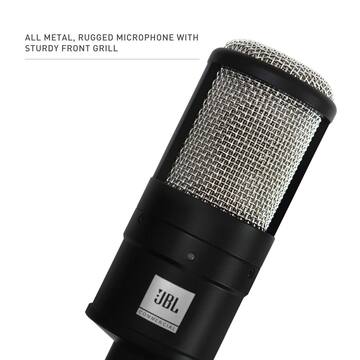

  • All metal, rugged body with sturdy front grille

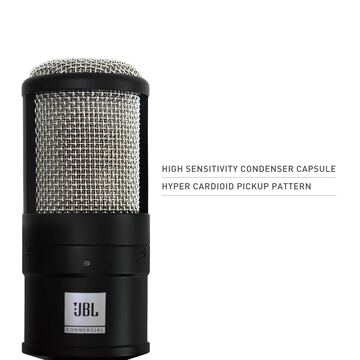

  • High sensitivity condenser capsule
  • Hyper-cardioid pickup pattern

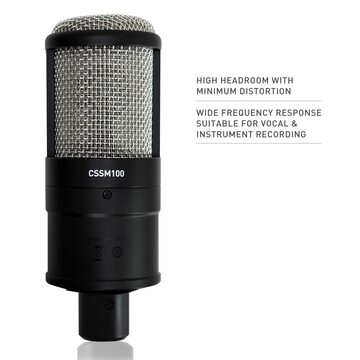

  • High headroom with minimum distortion
  • Wide frequency response suitable for vocal & instrument recording

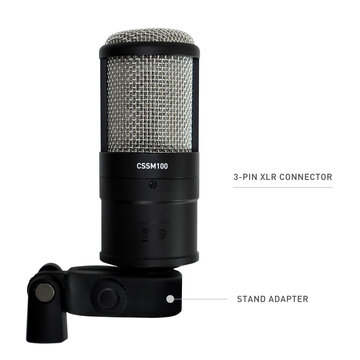

  • 3-pin XLR connector
Transducer 14 mm Condenser Capsule
Polar Pattern Hyper-cardioid
Frequency Response 20 Hz – 20 kHz
Sensitivity 36 dBV ±3 dB (0 dB=1 V/Pa at 1 kHz)
Equivalent Noise Level ≤ 24 dBA
Max Peak SPL 110 dB (THD ≤ 1% at 1 kHz)
Impedance 100 Ω
Temperature Range -40 – 55° C
Phantom Power +48V ±4V
Current Draw 3 mA
Dimensions Diameter 54 mm, Length 148 mm
Net Weight 383 g
